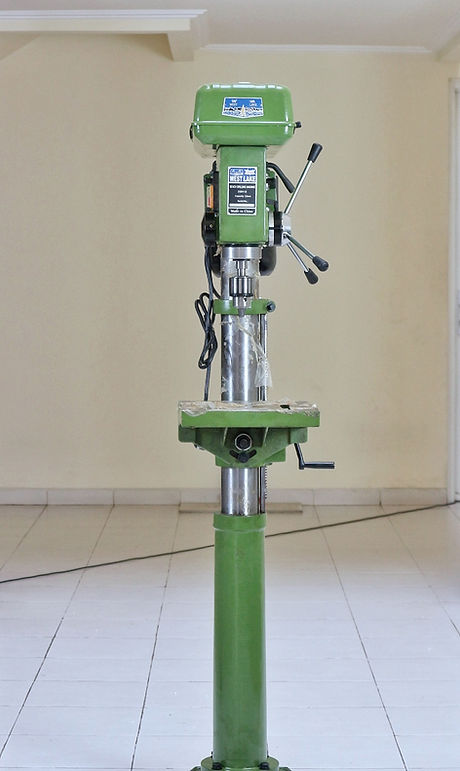

ZQD-4132

Light Type Drill Press

Karakteristik:

  • Ringan dan fleksibel, dapat digunakan tidak hanya pada reparasi mesin pengolah tetapi juga reparasi DIY (Do It Yourself) dan penggunaan sehari - hari

  • Tersedia 1PH dan 3PH

​

Aksesoris Standar:

  • Drill Chuck

  • Arbor

  • Taper sleeve

  • Drift

  • Wrench

ZQD-4132: Product

ZQD-4132

  • Max. Drilling Capacity : 31.5mm

  • ​Diameter of Column : 85mm

  • Spindle Travel : 110mm

  • Distance Spindle Axis to Column Generating Line : 200mm

  • Max. Distance Spindle Nose to Table : 390mm

  • Max. Distance Spindle Nose to Base : 1140mm

  • Spindle Taper : MT3

  • Spindle Speed Range : 150~2270 rpm

  • Spindle Speed Series : 12

  • Dimension of Worktable Surface : 280 x 280 mm²

  • Dimension of Base : 566 x 356 mm²

  • Overall Height : 1680mm

  • Power of Motor : 1100W

  • Voltage : 220V

  • Gross / Net Weight : 115 / 108 kg

  • Packing Dimension : 108 x 77 x 34 cm³
